Magnetic Stacking and De-Stacking Conveyors

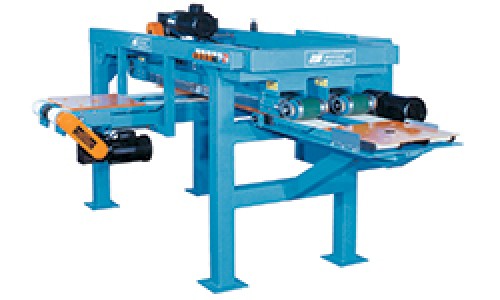

Bunting® Stacking Modules can be configured to take sheets or blanks from your cut-to-length operation and then transfer, index, and stack them at pre-selected destination points. Stampings can be conveyed away from your press die area into a stack.
A magnetic sheet fanner unit can be installed to fan and separate stacked parts or blanks and feed them one at a time into production machinery. As the ferrous sheets or parts are acquired and magnetically fanned, they are separated and lifted one at a time by the suction cups to the overhead magnetic conveyor and transported to the next workstation.
• Available for either standard horizontal (sheet on top) or in the inverted position (sheet on bottom)
• Available for gang mounting and driven to handle sheets up to 120″ wide and up to 180″ long
• Individually driven MDC Conveyors can be utilized for small sheets
• Optional proprietary permanent magnetic switches for accurate sheet stacking
• 4″ wide belted conveyors ganged to handle wider sheets
• Belt speeds from 20′ to 300′ feet per minute.
